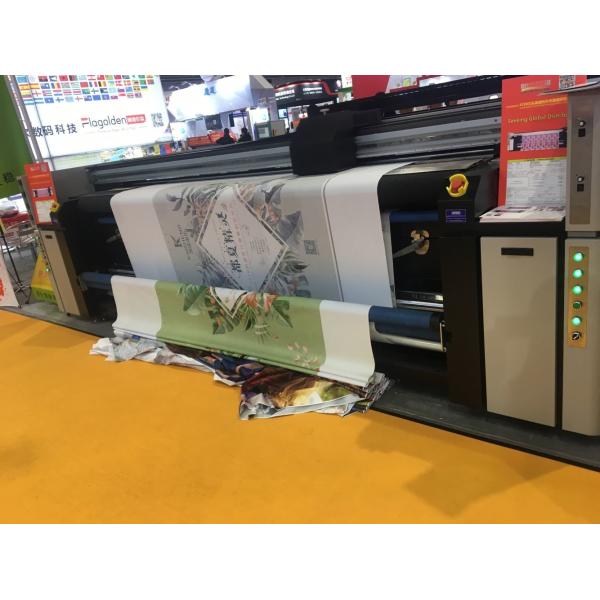

outdoor flag digital printer machine for sublimation printing
inkjet machine specifications:
Direct Textile Printer Digital Printing Sublimation Printer Textile
Printer with epson print head is suitable for producing multi color
fabric in polyster fabric material. It is widely used to produce
flag textile, ribbon, wall sticker etc. Automatic printing and dye
make colors more bright, more fantastic, more beautiful.
More sublimation printer details
1. rapidly heating, good leakproofness ensure the temperature
constant
2. filter and sublimation smoke efficiently, keep the environment
clean
3. Compatible with many brands of sublimation ink, easily to
control the printing cost.
4.using HIWIN mute guide rail.
5.Germany IGUS silent drag chain.
6.make your printing environment more quieter
7.X axis and Y axis are using AC servo motors
| Product Model | CSR 2200 |
| Printhead | Piezo technology, Three Epson printer heads |
| Ink | Environmental Sublimation ink, Pigment Ink optional |
| Color | Dual KCMY |
| Printing Media | Soft roll to roll |
| Fabric Type | Knitted or woven cotton,linen,silk,wool,chemical
fiber,nylon.oxford,cotton etc |
| Medium Transfer | Continous Transport Automatic Fabric Feeding & Taking-up |
| Nozzles | (180 nozzles x 8 lines ) x3 heads |
| Printer head higher | 15mm / 6mm ( Adjustable ) |
| Ink supply model | Continuous ink supply |
| Ink Volume | 2000ML Volume ink,automatic ink detector |
| Max materials width | 2200mm |
| Printing width | Maximum 210 cm |
| Printing Speed | Production Mode 45㎡/hour |
| Image Data Format | TIFF,JPEG |
| Rip Software | ONYX |
| Roll diameter | 3 Inch |
| Maximum weight for roll material | 100kg |
| Interface | USB 3.0 |
| RAM | 128M |
| Printer power | AC210-230V / AC220-240 Adaptive 50/60Hz |
| Sublimation machine | AC220-240V. 16A. 50/60Hz |
| Power consumption | Direct dye sublimation heater 3500w |
| Printer 1000w |
| Temperature | 20-32°C(68 – 89.6 ℉) |
| Humidity | 40-60% RH |
inkjet printing wildly usage product
Home Decoration
Print on polyester fabric
make windows curtain and Table cloth sheets
can make Wall Stickers.
printing use for flag making
More Advantage
This machine prints directly on fabric without heating transfer
process. It can work continuously for 24 hours without corrugated.
1. Stable and continuous printing, using strong mechanical to
ensure printing high resolution and stabilitIty
2.Adopt professional feeding system and fit to textile without
tension. Stable feed
resolution and stability material, make sure printing process
3. No need platemaking and fit to flag and scroll
4. Using constant temperature coloration box, fast temperature
rising. Good tightness to guarantee the even temperature
5. Environmental smoke exhaust filter system to handle smoke
efficiently and make clean work shop
6. Use open ink supply system which is compatible to more brand
sublimation ink
Product Service
1.With one year warranty and lifelong technical support.
2.Offer Video and operation manual, and the professional technical
staff online guidance.
3. Guarantee prompt warranty service for main parts repairmen and
replacement by international courier
4. provide production, R&D, marketing and service. We provide high quality
products, profitable printing solution,free training,on line
technicial supporting and on-site service to our customers.
COMPANY INDRODUCTION
Shanghai Color Digital Supplier Co.,ltd
was established in 2001. It is advanced professional Digital
Printing Equipment & Relevant materials manufacture in china .
As the development of the market, we spend a lot of financial
resources and human resources to focus on the research and
development of indoor and outdoor inkjet printer, and all kinds of
ink. In order to satisfy our customer of all over the world, we
continually upgrade our service and improve the quality of our
products.
Our products include:Digital Textile Printers with Epson / XAAR /
Kyocera Head,Sublimation Heater(Oven),Printing Materials,inks and
Relevant Spare Parts for Piezo Printers.All our products have been
CE Certificated.
